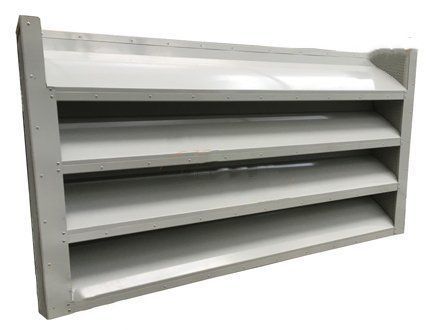

DECIBEL AL® 300 and DECIBEL AL® 600 are a single louver attenuating system. The louvers are made of steel sheets, filled with sound-absorbing material, and one-sided cover by a perforated metal sheet.

The standard sizes of the box are 12'' х 40'' х 40''. or 24'' х 40'' х 40''. This makes the attenuators easy to install on facade openings or hang on support metal construction. They can also be stored as standalone screen wall attenuators. DECIBEL AL® 300 and DECIBEL AL® 600 are used mainly in engine rooms, ventilation openings, power generator rooms, boiler rooms, cooling towers, or any other industrial or HVAC systems.

DECIBEL AL® is made of galvanized or powder-coated metal frame and modular parts, including sound-insulating and sound-absorbing front panels. The wings are made of galvanized sheet metal with a finish of perforated sheet metal and filling of sound-absorbing material.



DECIBEL AL® sound-insulating louvers are specially produced  for  use in cases where a large amount of air must pass  through  a  louvre  and  where  the  installation space  is  limited. This includes enclosures, generators and cooling / heating systems.

Two standard sizes of DECIBEL AL® (12'' and 24'') soundproofing louvers are produced, each with its own properties in terms of air flow, sound insulation and installation depth. DECIBEL AL® can also be produced in non-standard sizes.

Standard dimensions of DECIBEL AL®

12'' х 40'' х 40'';
24'' х 40'' х 40'';

(Non standard dimensions available upon request)

Material: Galvanized steel;
Perforated sheet metal;
Sound-absorbing acoustic material;
Aluminum
Finish and colours : in RAL
Properties: Small installation depth;
Easy to install;
Snow and rain resistant;

Installation: By direct fastening with screws or оn an installation frame;
The specifics of the installation are determined by the technical features of the project.
Acoustic Performance of DECIBEL AL® according to EN ISO 140-1:1997
Performance of DECIBEL AL®
Aerodynamic performance of DECIBEL AL®12''
Static presure drop (N/m2)2,811,326,246,372,399,2142,6185,1
Face velocity (m/s)0,511,522,533,54
Acoustic Performance of DECIBEL AL® 12''
Octave band center frequency (Hz)631252505001000200040008000
Transmission Loss (dB)78111319191514
Aerodynamic performance of DECIBEL AL® 24''
Static presure drop (N/m2)5,421,650,990,7147,9208,2283,6357,5
Face velocity (m/s)0,511,522,533,54
Acoustic Performance of DECIBEL AL® 24''
Octave band center frequency (Hz)631252505001000200040008000
Transmission Loss (dB)810132532342930
