ECHO CLOUD - Fabric Acoustic Baffle

ECHO CLOUD - Fabric Acoustic Baffle
ECHO CLOUD - Fabric Acoustic Baffle
ECHO CLOUD - Fabric Acoustic Baffle
ECHO CLOUD - Fabric Acoustic Baffle
ECHO CLOUD - Fabric Acoustic Baffle
Acoustic treatment
Acoustic treatment
Best seller
Best seller
Customisable
Customisable
Fire retardant
Fire retardant
Handmade
Handmade
Indoor use
Indoor use
Made in EU
Made in EU
Thin
Thin
T02-Caribbean Sand
T02 Caribbean Sand
T03-Todays Herald
T03 Todays Herald
T04-Coffeelandia
T04 Coffeelandia
T05-Bitter Chocolate
T05 Bitter Chocolate
T06-Rubbies are Red
T06 Rubbies are Red
T07-Violet Candy
T07 Violet Candy
T08-Baby Elephant
T08 Baby Elephant
T09-Mr. Grey
T09 Mr. Grey
T11-Nicotiana Rustic
T11 Nicotiana Rustic
T10-Lead Arrow
T10 Lead Arrow
T13-Jet Set
T13 Jet Set
T12-Frog`s Romance
T12 Frog`s Romance
T01-Black Cat
T01 Black Cat
T14-Stone Breaker
T14 Stone Breaker
T15-Soft Powder
T15 Soft Powder
T16-London Mist
T16 London Mist
T17-Smokey Eyes
T17 Smokey Eyes
T18-True Turquise
T18 True Turquise
T19-My Father`s Jacket
T19 My Father`s Jacket
T20-Chocolate Souffle
T20 Chocolate Souffle
T21-Moroccan Sun
T21 Moroccan Sun
T22-Purple Haze
T22 Purple Haze
Request A Quote
Offer for
ECHO CLOUD - Fabric Acoustic Baffle

(Please fill all the required fields, marked with *.)

How do you prefer us to contact you?


This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

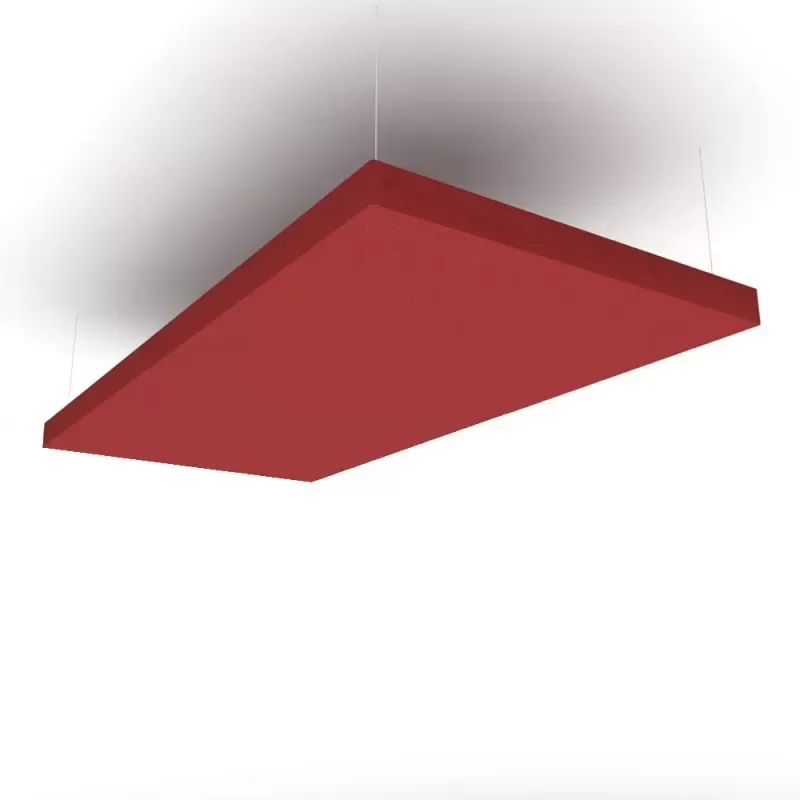

The Echo Cloud fabric acoustic ceiling baffle is a suspended acoustic panel that serves to control the acoustics and to reduce the noise levels in public and industrial spaces. The advantage of Echo Cloud is that it works with double area per unit (face and back). The ability to adjust the distance to the ceiling allows acousticians to increase the efficiency of the panel at low frequencies.

The Echo Cloud enables designers and architects to position it in different planes relative to the ceiling, using an adjustable suspension system. To complement the aesthetic look, the back of the baffle can be made in the same or in different textile colour. The application of Echo Cloud  can completely or partially alter the ceiling plane and serve to conceal existing communications on the ceiling.



There are two types of anchoring systems for the Echo Cloud. Suspended metal rope system or fixed metal studs system. The metal stud system is applied to ensure the stability of the acoustic baffle in rooms where there is a higher air velocity or when they are place near the ventilation grilles.

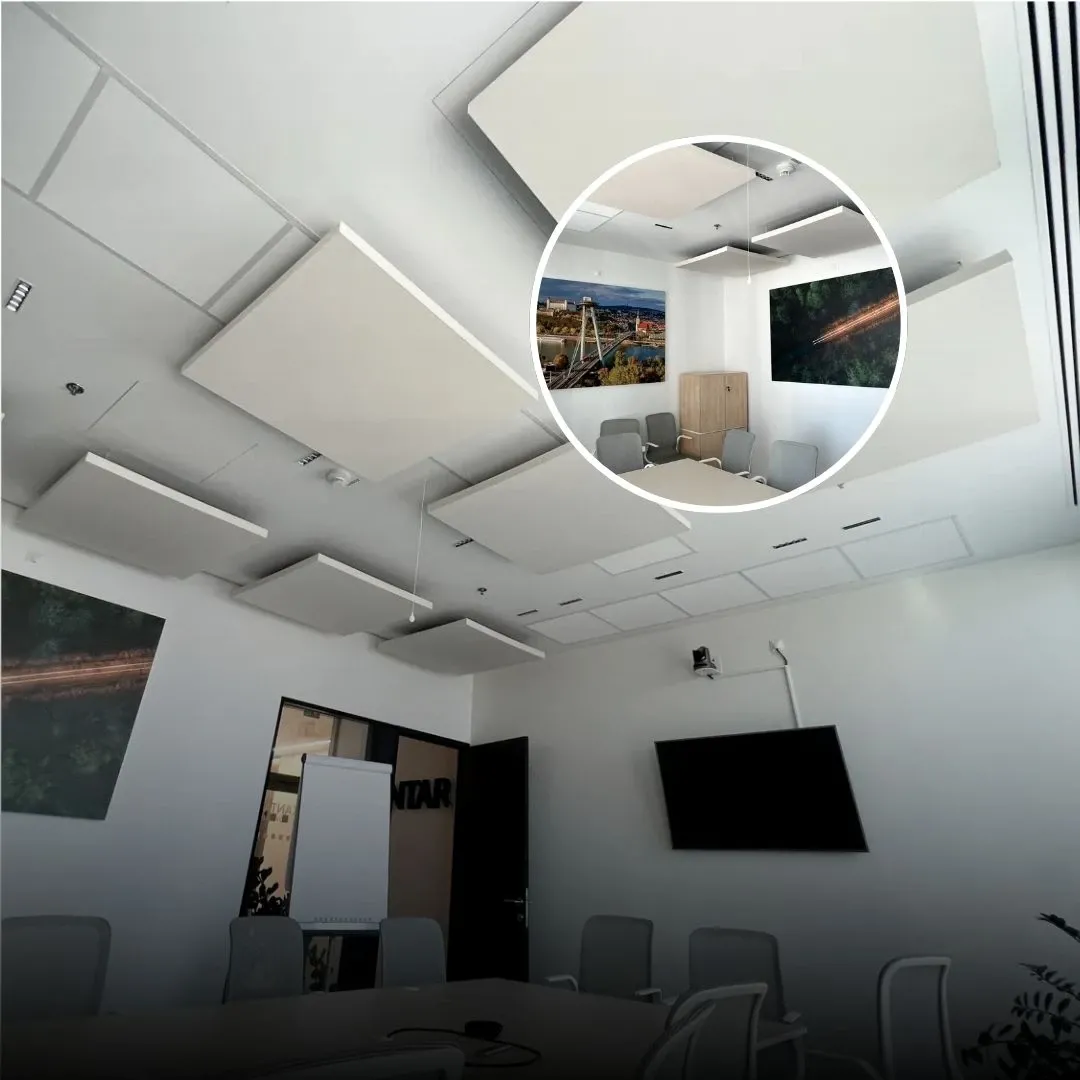

The different sizes and the rich colour palette enable architects and designers to improve the acoustics of office spaces where the Echo Cloud fabric acoustic ceiling baffle can become a beautiful architectural accent. The size and arrangement of the baffle can create a "live" composition on the ceiling and can be further enhanced with build in LED lighting.

Acoustic Performance
Technical data
MaterialAcoustic foam and acoustic textile
Coloravailable in 22 colors (T01 - T22 from our catalogue)
Dimensions40'' x 20''
Thickness2''
Weight3.3 lbs
Installationon ceilings
