DB LW REG - Acoustic Attenuator

The DB LW REG Acoustic Attenuator is a high-performance sound-insulating unit engineered to lower noise generated by industrial equipment such as ventilation systems, compressors, and air ducts. Designed using a combination of Helmholtz and membrane resonator principles, it effectively suppresses airborne sound energy while maintaining airflow efficiency. This dual-technology design ensures reliable acoustic performance across a wide frequency range.

How It Works

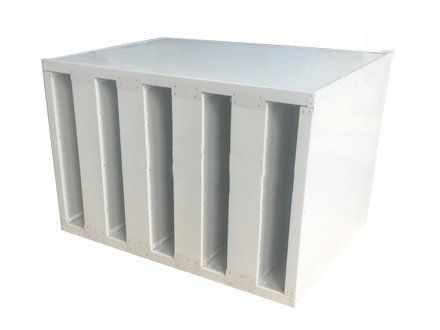

The attenuator consists of a rigid, galvanised steel enclosure with powder-coated metal panels that house integrated sound-absorbing louvres. Each louvre combines a perforated steel surface with a sound-absorbing core, forming a hybrid resonant and absorptive system that reduces both tonal and broadband noise. The Helmholtz resonator elements target specific frequency peaks, while the membrane structure provides additional damping, ensuring optimal noise reduction without restricting airflow.

Key Benefits

• Minimises noise from HVAC systems, compressors, and industrial ducts
• Combines Helmholtz and membrane resonator technologies for maximum efficiency
• High-performance acoustic absorption and transmission loss in one compact design
• Constructed from durable galvanised steel with a powder-coated finish
• Suitable for indoor and outdoor installations in industrial and commercial environments
• Custom dimensions available for project-specific applications
• Low-maintenance construction ensures long-term reliability

Installation Overview

The DB LW REG attenuator is designed for flexible installation on air handling systems, exhaust ducts, or directly over noisy machinery. Each module connects easily to standard ductwork or equipment housings. The unit can be mounted horizontally or vertically, depending on airflow direction and site requirements. Custom sizing and mounting options are available to suit non-standard system geometries, ensuring straightforward integration into existing mechanical layouts.

Key Specifications

• Standard Dimensions: 1560 × 2000 × 1500 mm; 1200 × 1940 × 1500 mm; 1000 × 1600 × 1200 mm
• Custom Sizes: Available upon request
• Construction: Galvanised steel body with powder-coated finish
• Acoustic Design: Combined Helmholtz and membrane resonator technology
• Louvres: Galvanised steel, perforated finish, filled with sound-absorbing material
• Application: HVAC systems, compressors, air ducts, heat pumps, extraction units, cooling towers, and chillers

Best Suited For

• Heating, ventilation, and air conditioning (HVAC) systems
• Industrial compressors and machinery enclosures
• Air extraction and exhaust systems
• Cooling towers and chillers
• Heat pump installations
• General industrial noise control applications

Engineered for Industrial Noise Reduction

The DB LW REG Acoustic Attenuator combines robust construction with advanced acoustic design to provide reliable and efficient sound reduction in demanding environments. With customizable configurations and proven performance, it is an essential solution for maintaining acoustic comfort and compliance in industrial and mechanical installations.

Contact DECIBEL today to configure a DB LW REG system customised to your project’s acoustic and airflow requirements, and achieve lasting industrial noise control with proven performance.
