Anti - vibration spring mount DECIBEL SMR

Anti - vibration spring mount DECIBEL SMR
Anti - vibration spring mount DECIBEL SMR
Anti - vibration spring mount DECIBEL SMR
Anti - vibration spring mount DECIBEL SMR
Anti - vibration spring mount DECIBEL SMR
Guaranteed result
Guaranteed result
Indoor use
Indoor use
Made in EU
Made in EU
Outdoor use
Outdoor use
Soundproofing
Soundproofing
Water resistance
Water resistance
Weather resistant
Weather resistant
Request A Quote
Offer for
Anti - vibration spring mount DECIBEL SMR

(Please fill all the required fields, marked with *.)

How do you prefer us to contact you?


This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

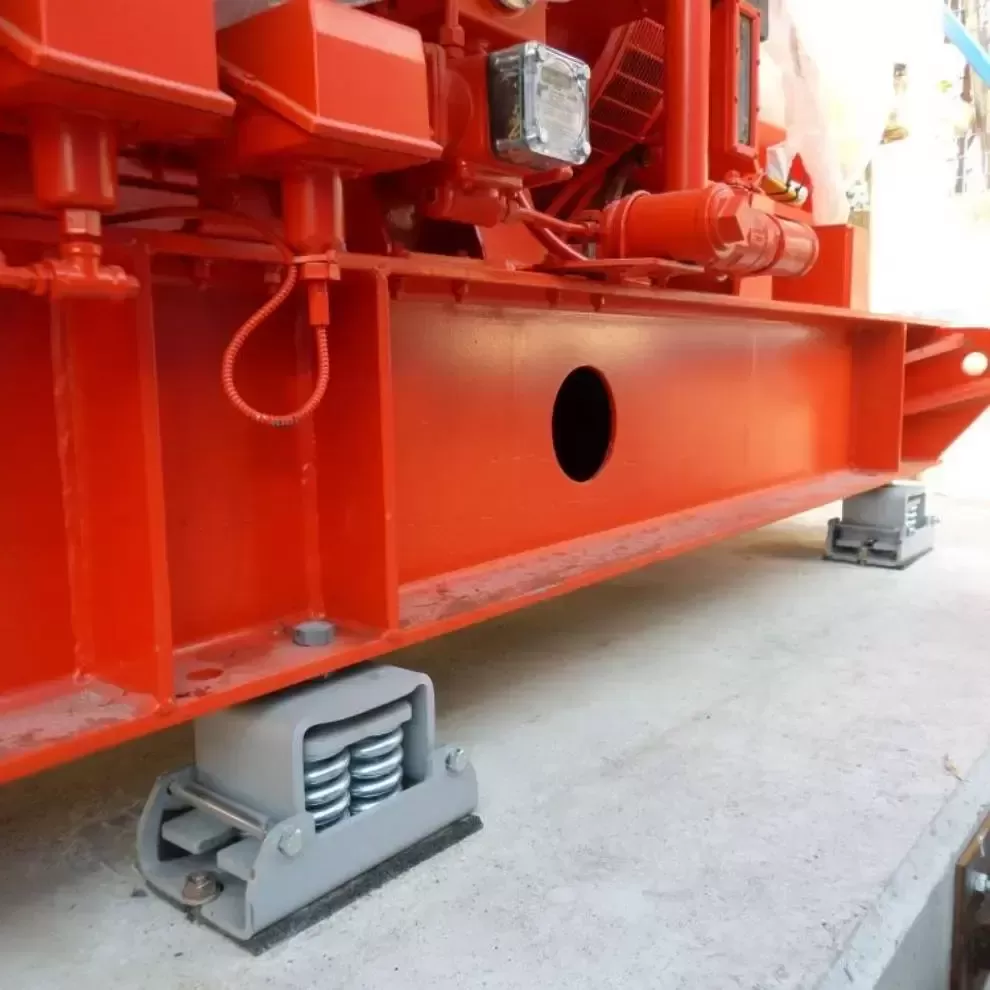

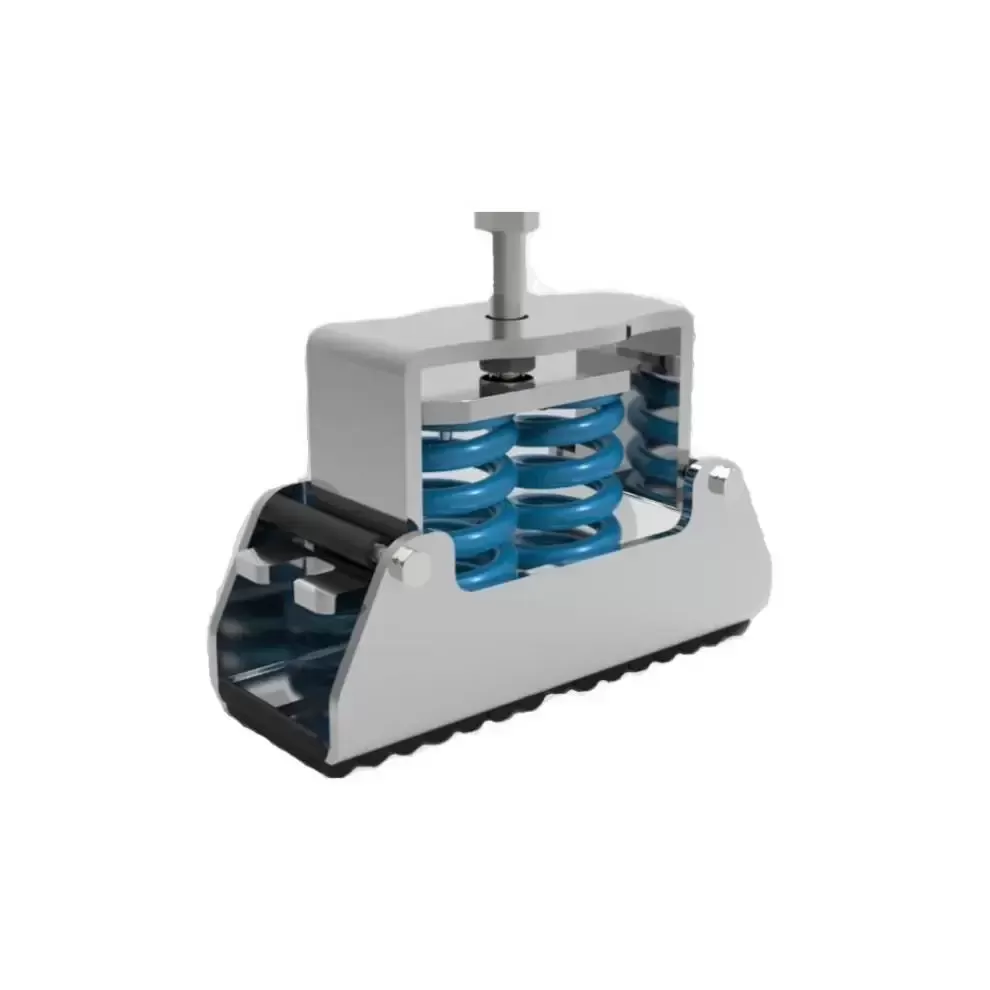

The anti-vibration spring mounts DECIBEL-SMR are multi-directional anti-vibration restraints with adjustable height. DECIBEL-SMR can be used for low-frequency vibration controls (low-speed rotation 400 rpm upwards) that also require lateral and vertical restraint and protection from earthquakes and excess wind pressure. They can sustain forces of the tension, compression, shear nature.

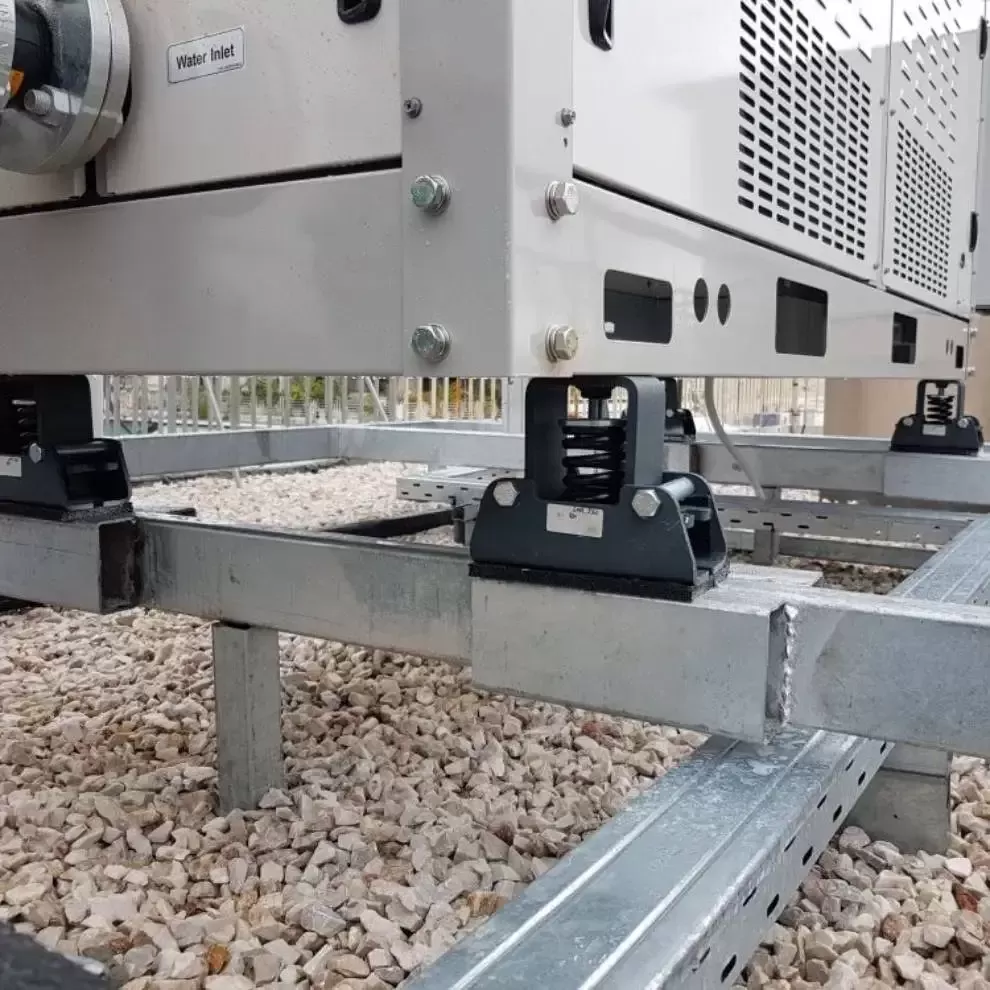

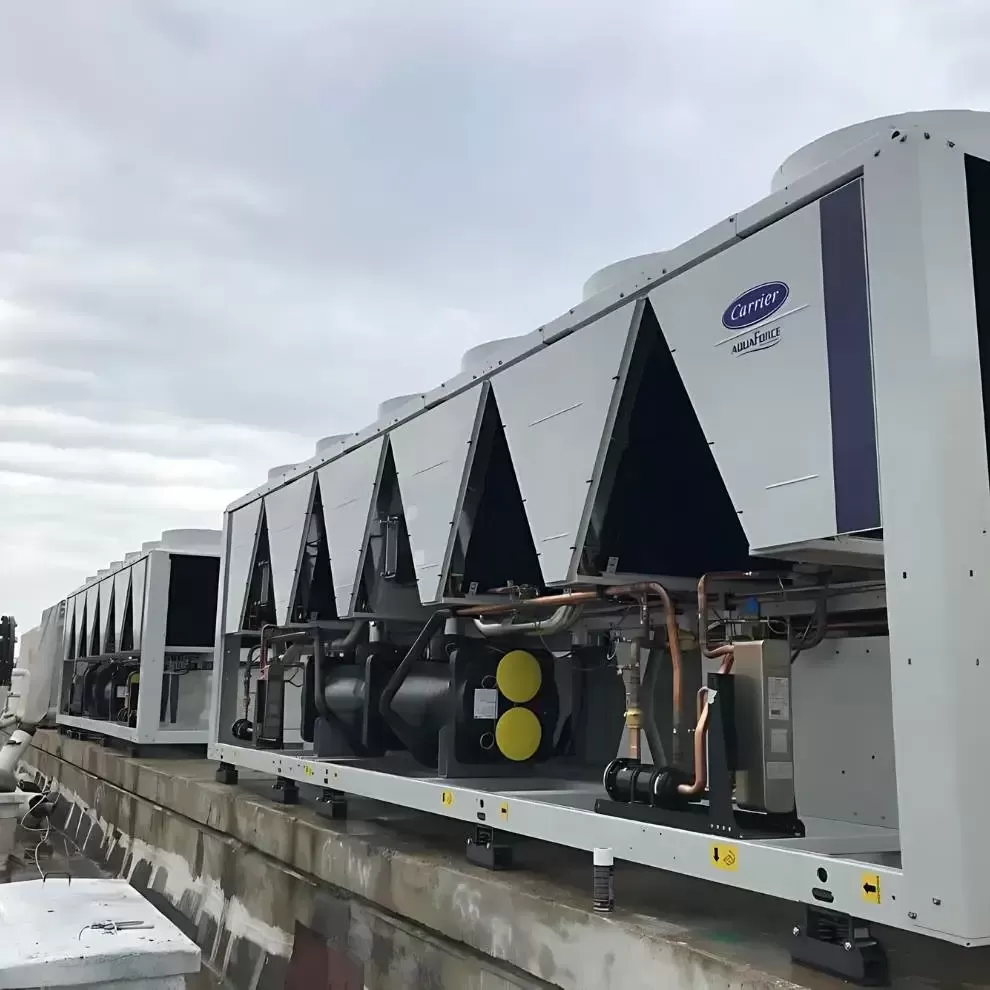

Typical applications are air compressors, two-cycle engines, chillers, water cooling towers, air handling units, etc. The casing is not made of cast iron, but of real steel and is protected from oxidation with polyester powder paint (hot-dip galvanized on request). Its innovative design has succeeded to minimize arc wildings’.

The anti-vibration springs comply with ISO.EN.10270 standards and have a color indicator to define the maximum load capacity. An adjustable-height system is placed, in order to align the machine during the installation.









At the base DECIBEL-SMR has a special rubber profile, resistant to outdoor conditions, thus offering better vibration isolation efficiency also at high frequencies. (optional)

Anti-vibration mounts DECIBEL-SMR advanced design can successfully sustain forces from various directions both vertical and lateral (like earthquakes, hurricanes, and wind-pressure protection).

An elastic gasket is interceded between the two vertical surfaces, to avoid a possible sound-bridge transmission.





DECIBEL SMR selection table
TYPE No. Of SpringsDimensions (A x B x H mm.)Maximum Load (Kp*)
DECIBEL SMR 250.1190 - 185 -164250
DECIBEL SMR 500.1190 - 185 -164500
DECIBEL SMR 750.1190 - 185 -164750
DECIBEL SMR 500.2295 - 260 - 164500
DECIBEL SMR 1000.2295 - 260 - 1641000
DECIBEL SMR 1500.2295 - 260 - 1641500
DECIBEL SMR 1000.44162 - 260 - 1641000
DECIBEL SMR 2000.44162 - 260 - 1642000
DECIBEL SMR 3000.44162 - 260 - 1643000
